3K Twill Weave Carbon Fiber Tube with Roll Wrapped Technology and Custom Size Options

제품 설명

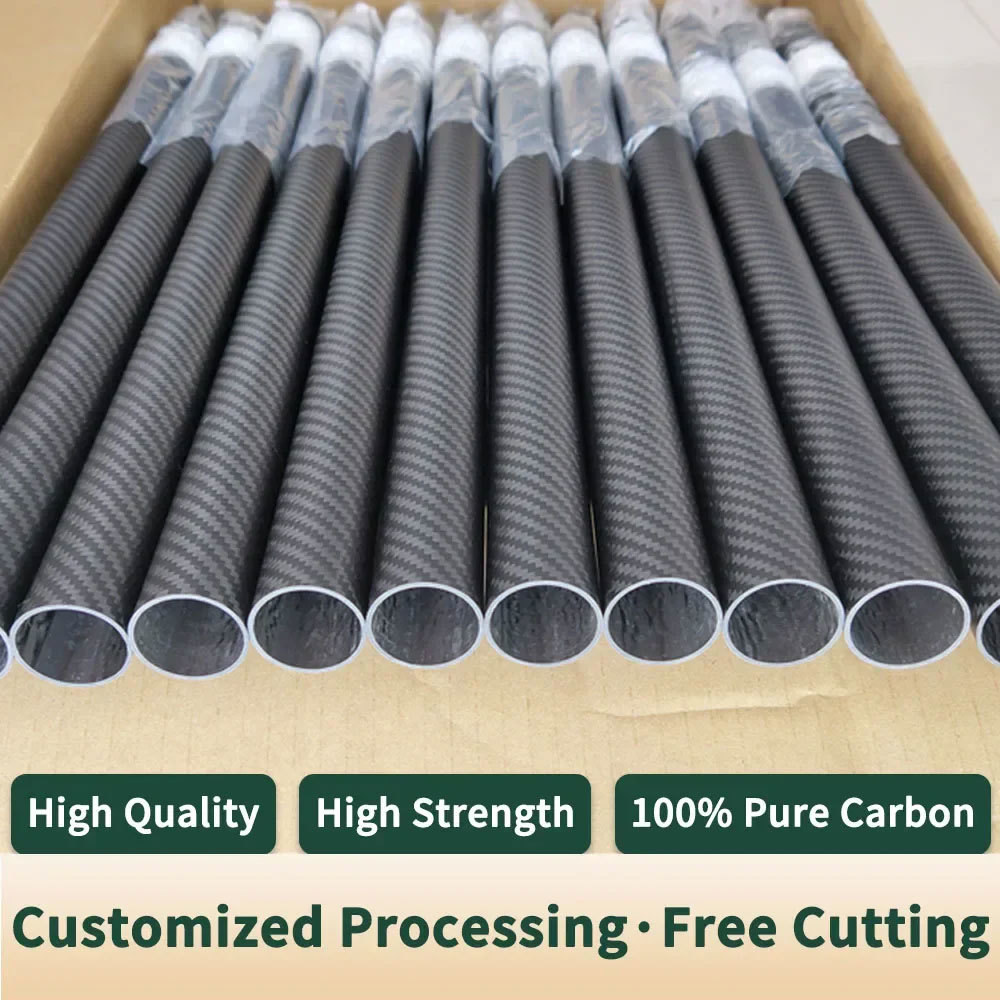

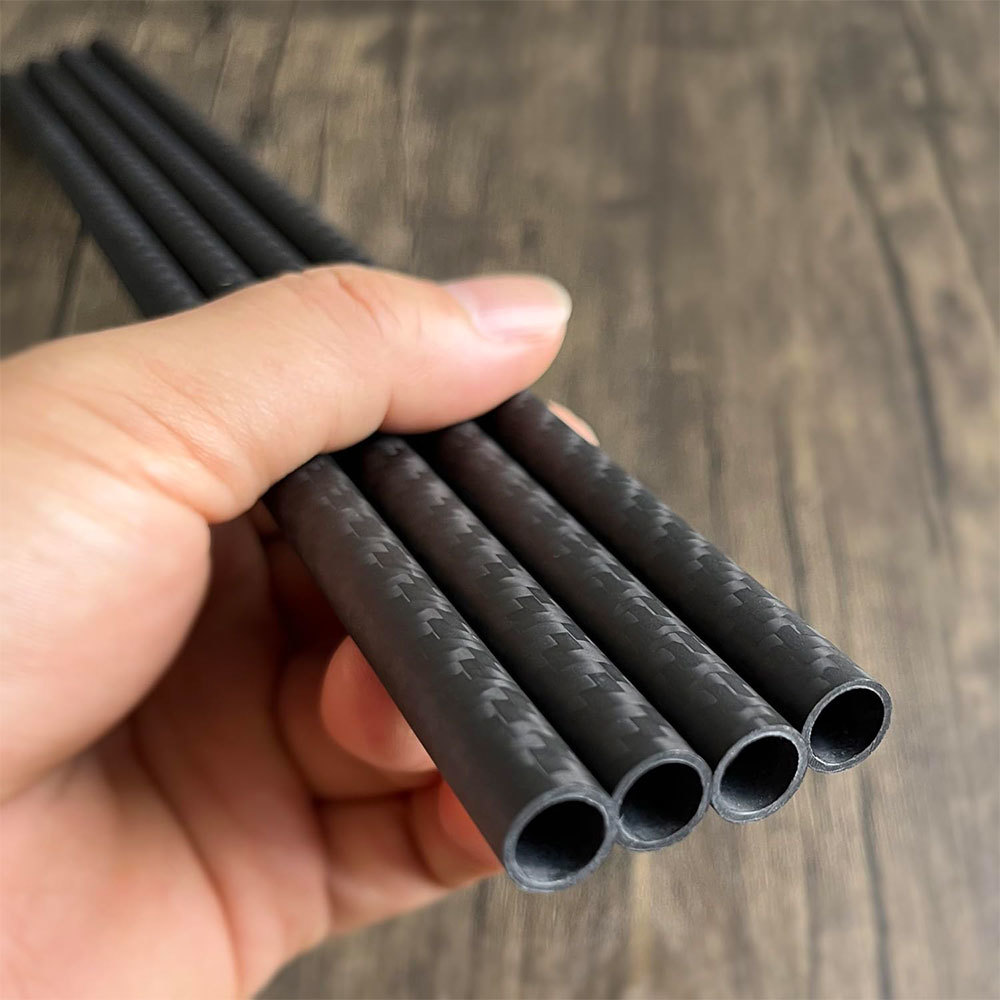

Carbon Fiber Tube 100% Real Carbon Fiber Twill Weave Round Pipe

This carbon fiber tube is manufactured using 100% genuine high-strength carbon fiber composite materials, engineered for applications that demand both exceptional mechanical performance and premium visual quality. The outer surface features a refined 3K twill weave pattern, a classic diagonal carbon texture widely used in aerospace, UAV, and high-end industrial components.

Produced through advanced roll-wrapping (or filament winding) technology, the tube is built layer by layer using precisely aligned carbon fiber prepreg sheets and high-performance epoxy resin. This ensures excellent structural uniformity, minimal void content, and consistent wall thickness throughout the tube.

Premium Material Structure

The tube is typically constructed with multiple reinforcement layers:

• Outer layer: 3K twill woven carbon fiber fabric (for aesthetics + surface strength)
• Middle layers: Multi-directional unidirectional carbon fiber sheets (0° / 90° / ±45°)
• Inner layer: High-density composite core for stability and compression resistance
• Resin system: High-modulus epoxy resin for strong bonding and durability

This hybrid structure allows the tube to achieve an excellent balance of:

• High tensile strength
• Superior torsional rigidity
• Lightweight performance
• Long-term fatigue resistance

Key Performance Advantages

• Ultra-lightweight design with significantly reduced weight compared to aluminum or steel
• High strength-to-weight ratio, ideal for performance-driven applications
• Excellent bending and torsional resistance, suitable for structural load environments
• Corrosion and rust resistance, suitable for indoor and outdoor use
• Low thermal expansion, maintaining dimensional stability under temperature changes
• UV and chemical resistance, suitable for harsh environments
• Smooth, high-end surface finish available in glossy or matte options

Aesthetic & Surface Quality

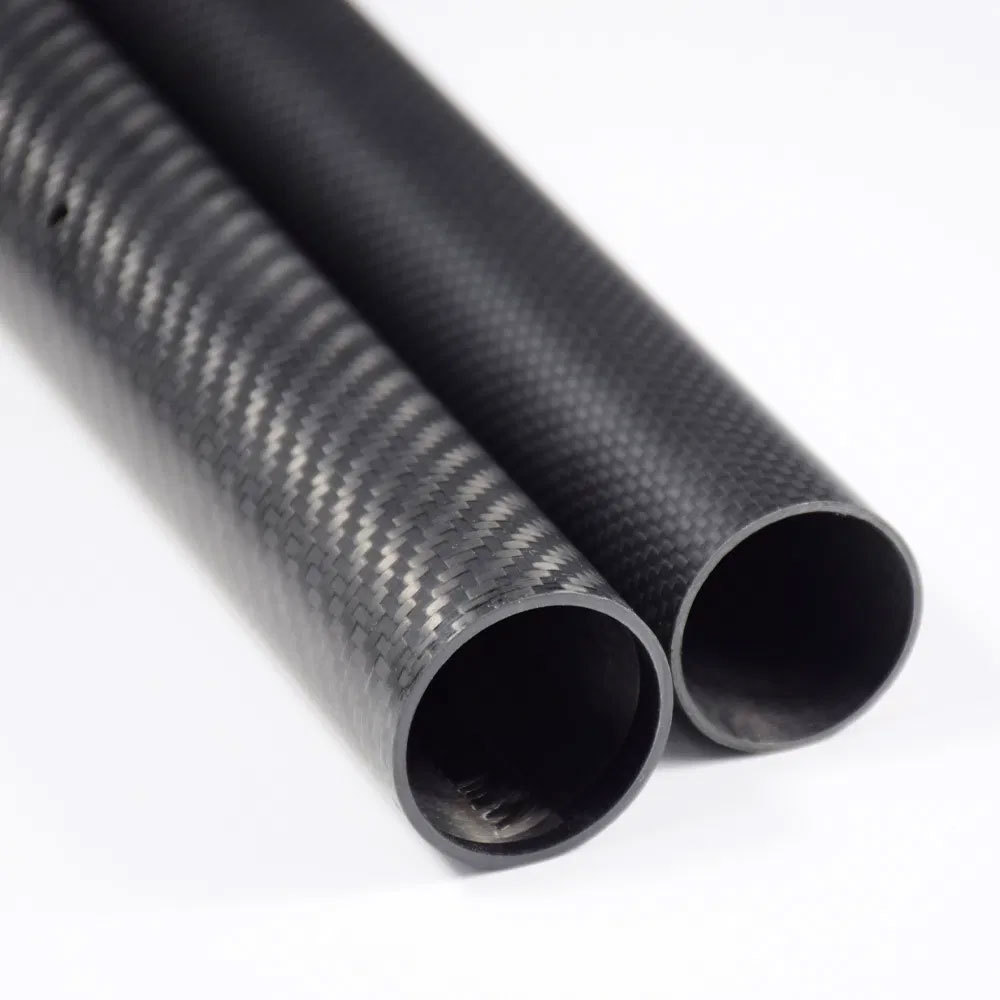

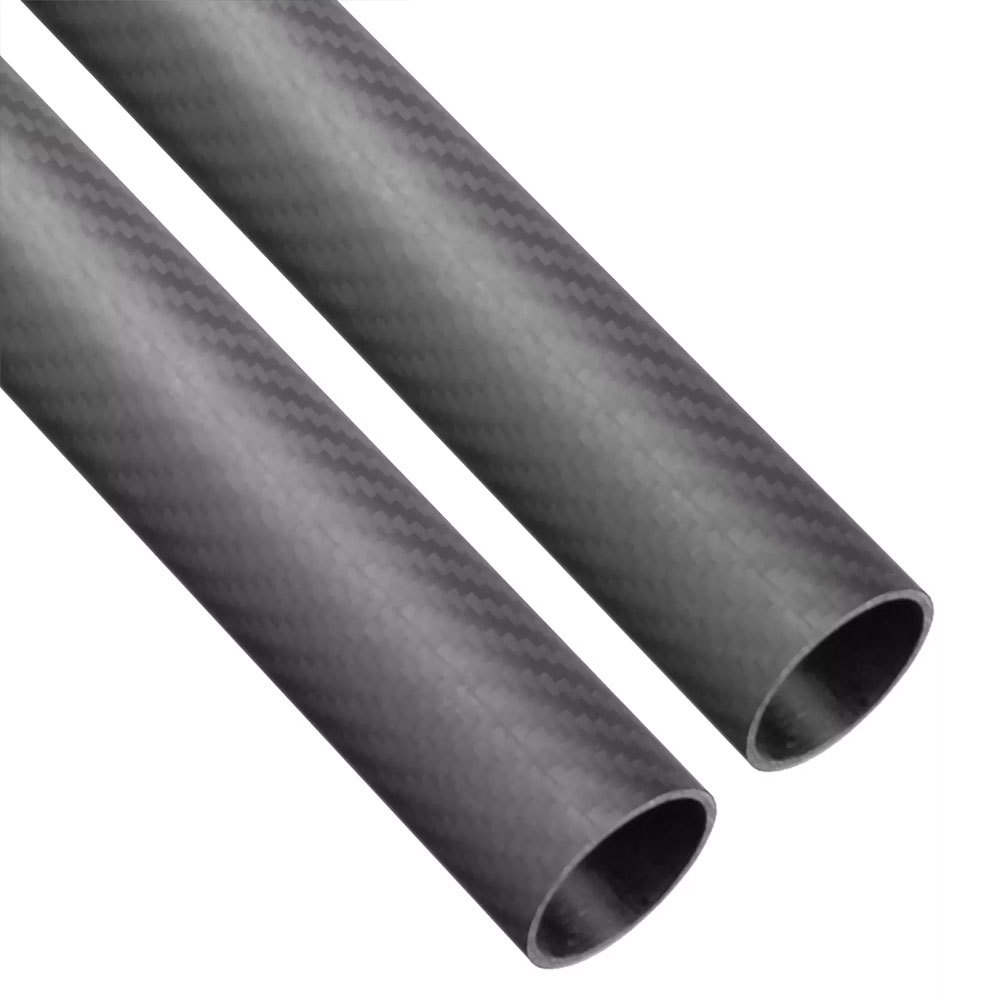

The 3K twill weave pattern creates a recognizable diagonal texture that gives the tube a modern, technical, and premium appearance. The surface is carefully polished and finished to ensure:

• Uniform weave alignment
• No visible fiber distortion
• High gloss depth (or refined matte finish)
• Scratch-resistant coating (optional protective layer)

This makes it suitable not only for engineering applications but also for visible structural designs where appearance matters.

Precision Manufacturing

• CNC-cut mandrel forming for accuracy
• High-pressure curing process for structural integrity
• Controlled temperature oven curing
• Post-finishing sanding and inspection

Why Choose This Carbon Fiber Tube

Compared with traditional metal tubing, this carbon fiber tube provides:

• Up to 5× lighter weight
• Higher vibration damping performance
• Greater fatigue resistance over long-term use
• A premium high-tech appearance suitable for visible installations

Sizes and Sections

We offer many different sizes and shapes of carbon tubing to choose from. We have many round, square, rectangular, airfoil, and oval sections available. Not all of our available sections are listed. We are always getting new sizes and shapes for custom projects. Please contact us to see if we have something that may work for you.
