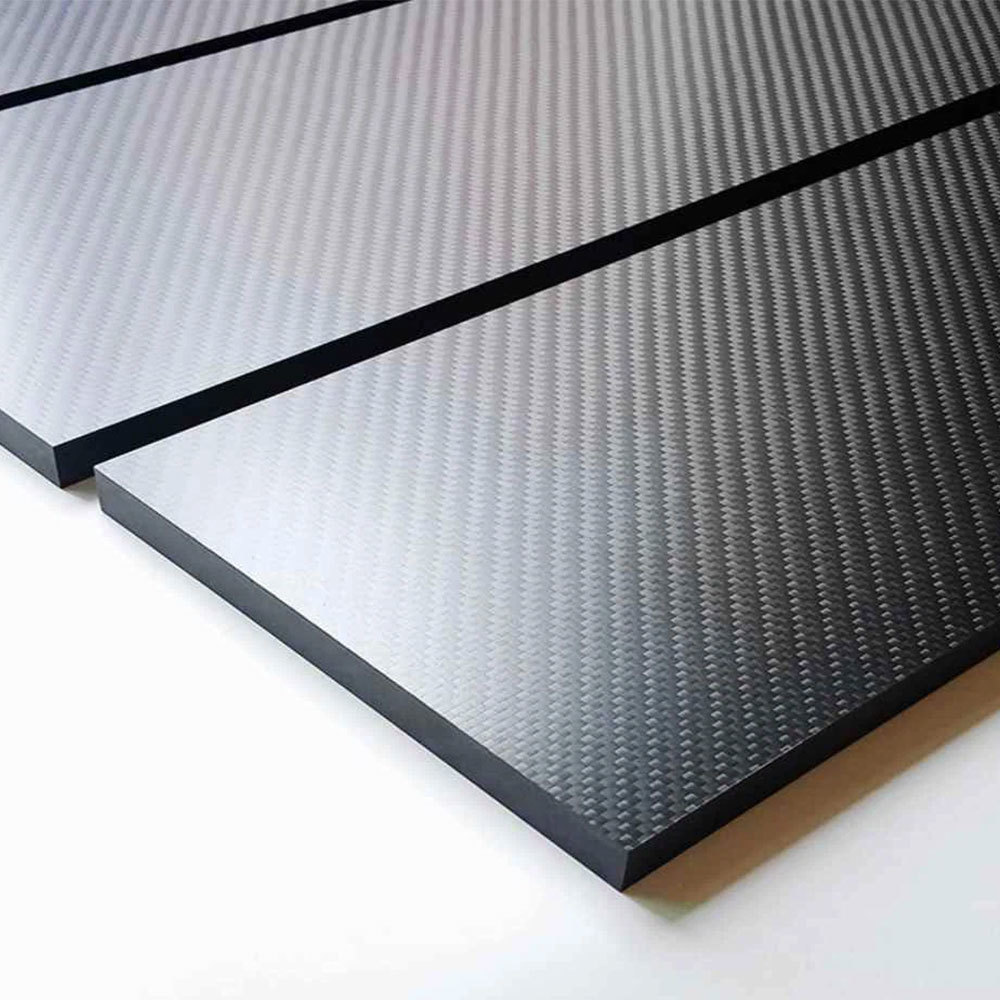

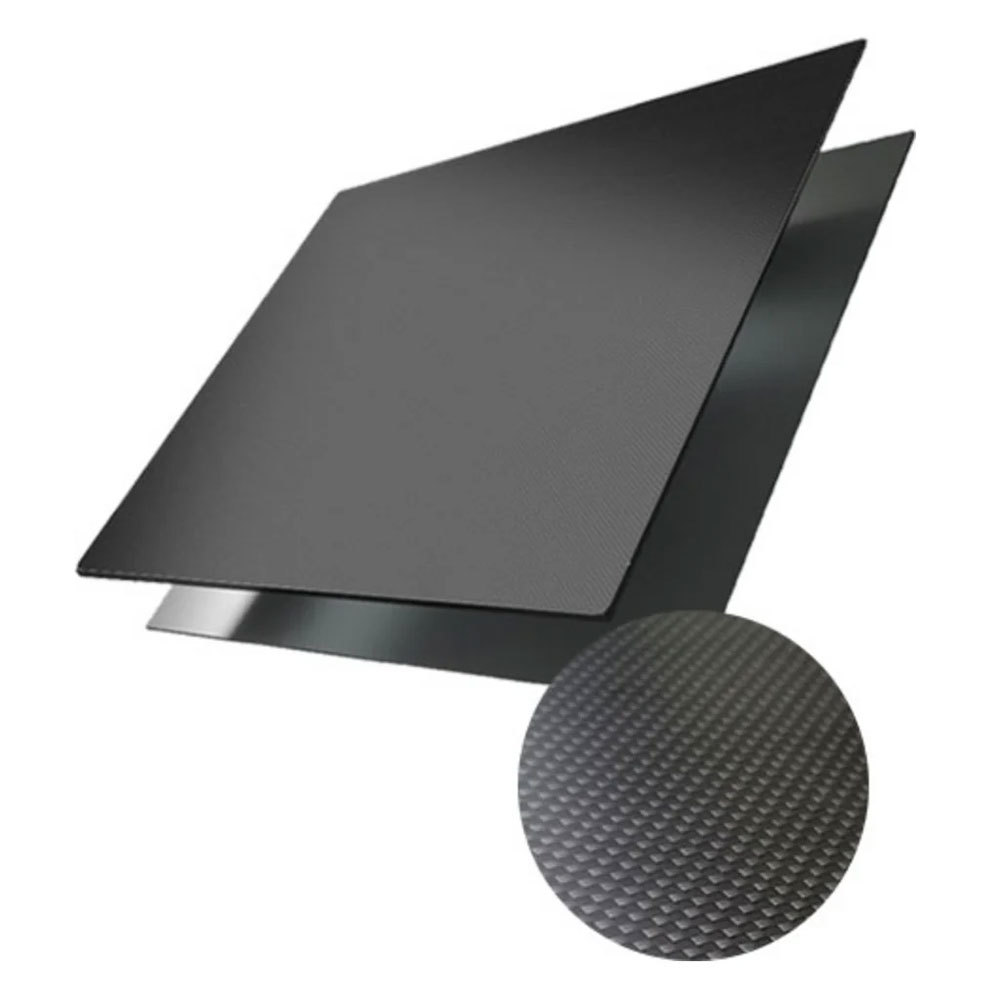

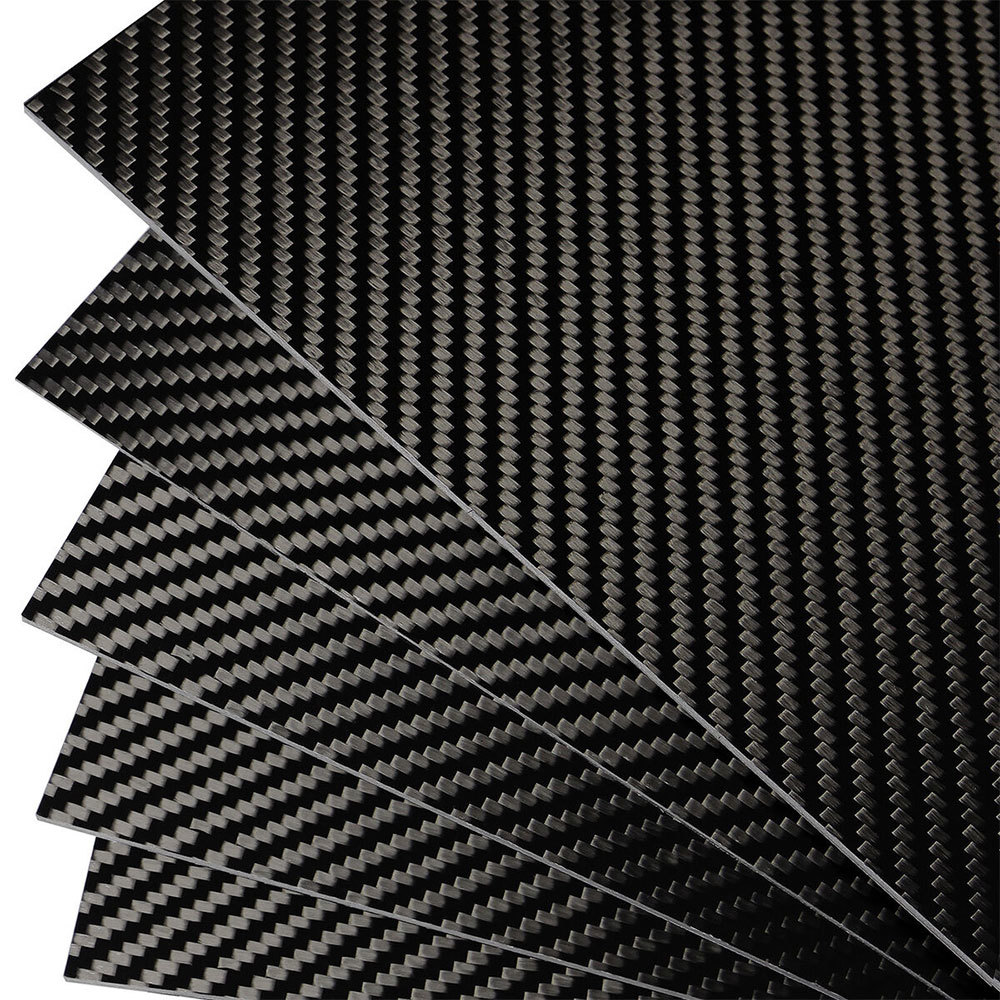

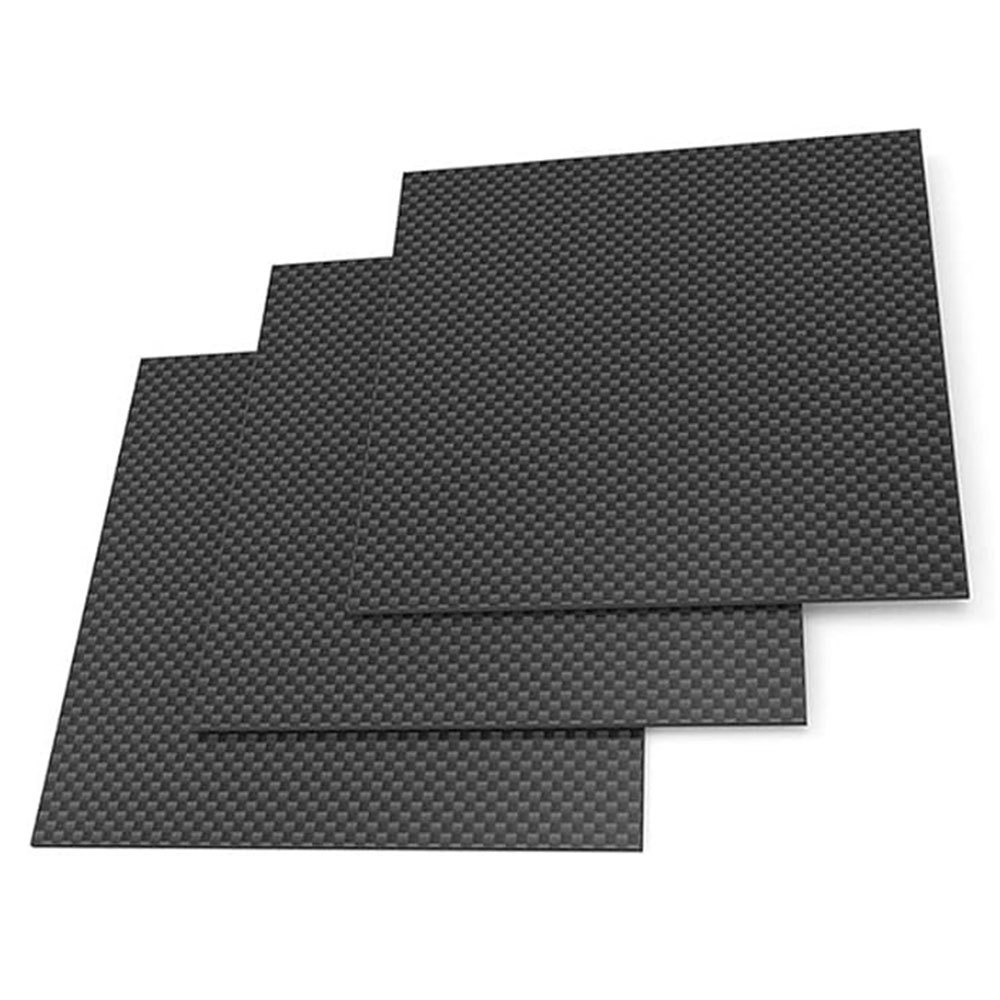

Light Weight 3K CFRP Panel Twill Matte Weave Woven Carbon Fiber Laminated Plate

제품 설명

Light Weight 3K CFRP Panel Twill Matte Weave Woven Carbon Fiber Laminated Plate

A carbon fiber plate (or CFRP plate) is a flat composite material made by laminating layers of carbon fiber fabric or unidirectional (UD)fibers embedded in a polymer resin matrix(e.g., epoxy, phenolic, or thermoplastic). These plates are engineered for high stiffness, lightweight strength, and corrosion resistance, making them replacements for metals in demanding applications.

Carbon fiber plates are a cornerstone of modern lightweight engineering, offering unmatched performance in demanding applications. Let me know if you need help selecting specifications or suppliers!

Key Variables

• Fiber Orientation: Unidirectional (UD), bidirectional (0°/90°), or multidirectional weaves.
• Resin Type: Epoxy (most common), phenolic (fire-resistant), or thermoplastic(recyclable).
• Curing Cycle: Temperature, pressure, and time determine final properties.

Key Selection Criteria

1. Load Requirements

- Static loads: UD plates for maximum strength.
- Multidirectional loads: Woven or quasi-isotropic plates.

2. Environmental Conditions

- High temps: Phenolic or PEEK resin plates.
- Outdoor use: UV-resistant coatings.

3. Thickness & Dimensions

-Thickness: 0.5 mm to 50 mm.
-Standard sizes: 1m x 2m sheets (custom sizes available).

4. Surface Finish

-Glossy (cosmetic), textured (anti-slip), or painted.

When to Choose Carbon Fiber Plates?

Opt for carbon fiber plates when:

-Weight reduction is critical (e.g., aerospace, EVs).
-High stiffness and dimensional stability are required (e.g., precision equipment).
-Corrosion resistance is essential (e.g.marine environments).

Avoid if:

- Budget constraints dominate
- Impact resistance is a priority (e.g, protective gear).

Applications

- Aerospace: Wing skins, fuselage panels, satellite structures.
- Automotive: Chassis reinforcement, body panels, battery enclosures for EVs.
- Sports & Recreation: Bicycle frames, snowboards, racing helmets.
- Industrial: Robotic arms, CNC machine beds, optical mounting plates.
- Defense: Armor-plated drone components, lightweight soldier vehicles.

Carbon Fiber Sheet Plate Specification:
